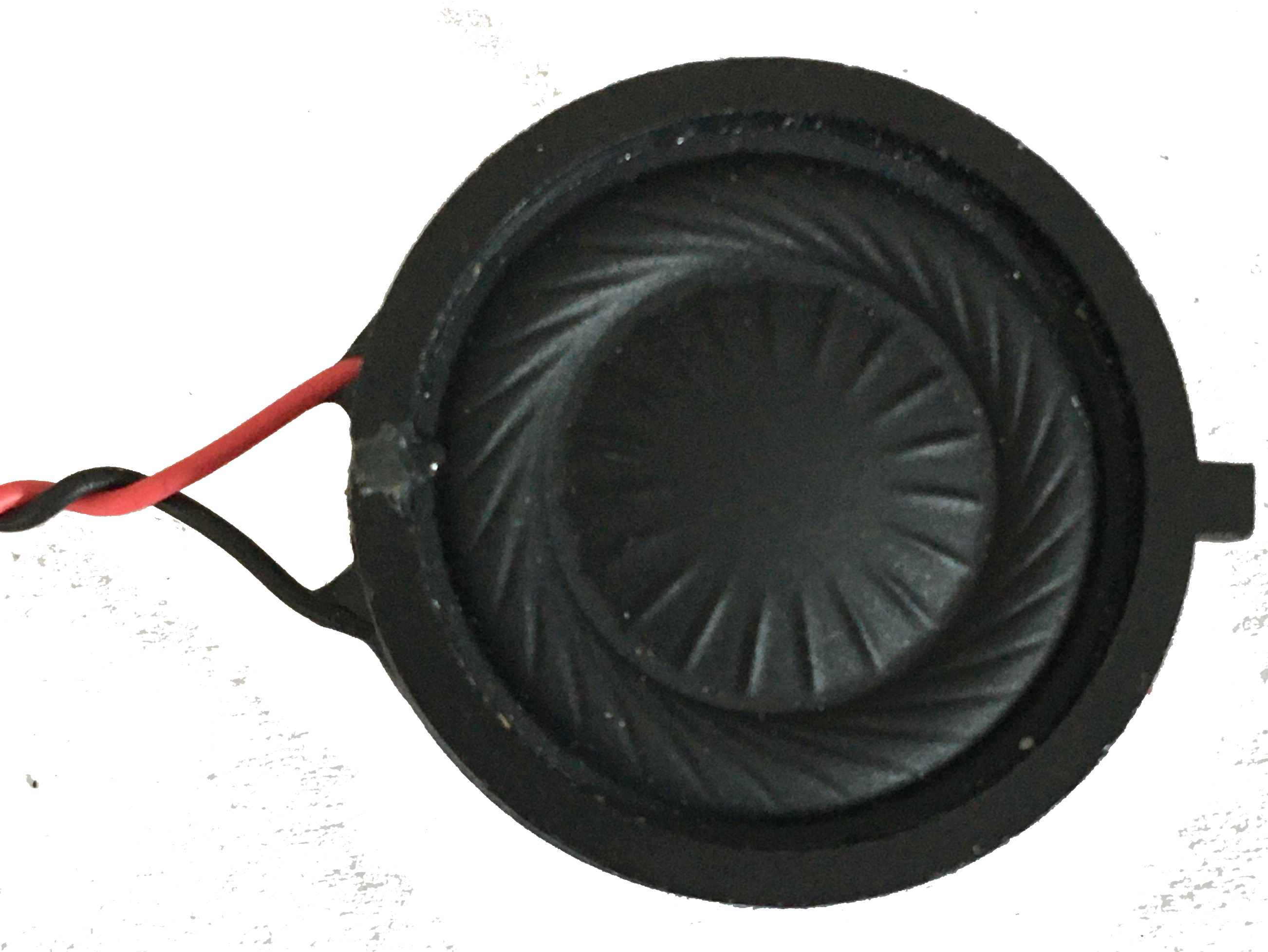

P0023004NM70CMR

  • · Size 22.5mm
  • · Height 7.0mm
  • · Impedance 8Ω ± 15%
  • · Power 1.0W/1.5W
  • · SPL 97dB
  • 3D image is for representational purposes only. Wires, connectors, terminals and speaker/microphone configurations can be customized for each project. Please contact Stetron for more information.

  • Key Features:

    • High output SPL of 97dB(rated power)
    • Low Fo of 650 Hz.
    • IP67 rated
    • Small diameter of only 22.5mm
    • Low profile of 7mm
    • Wide bandwidth from Fo to 20kHz

    Applications:

    • Medical
    • PND
    • Handheld Devices
