P0028004NP03CMR

  • · Size 28mm
  • · Height 7.5mm
  • · Impedance 4Ω ± 15%
  • · Power 3W/4W
  • · Fo 350Hz
  • · SPL 96.5dB
  • · Qts1.98
  • · Vas0.01 L

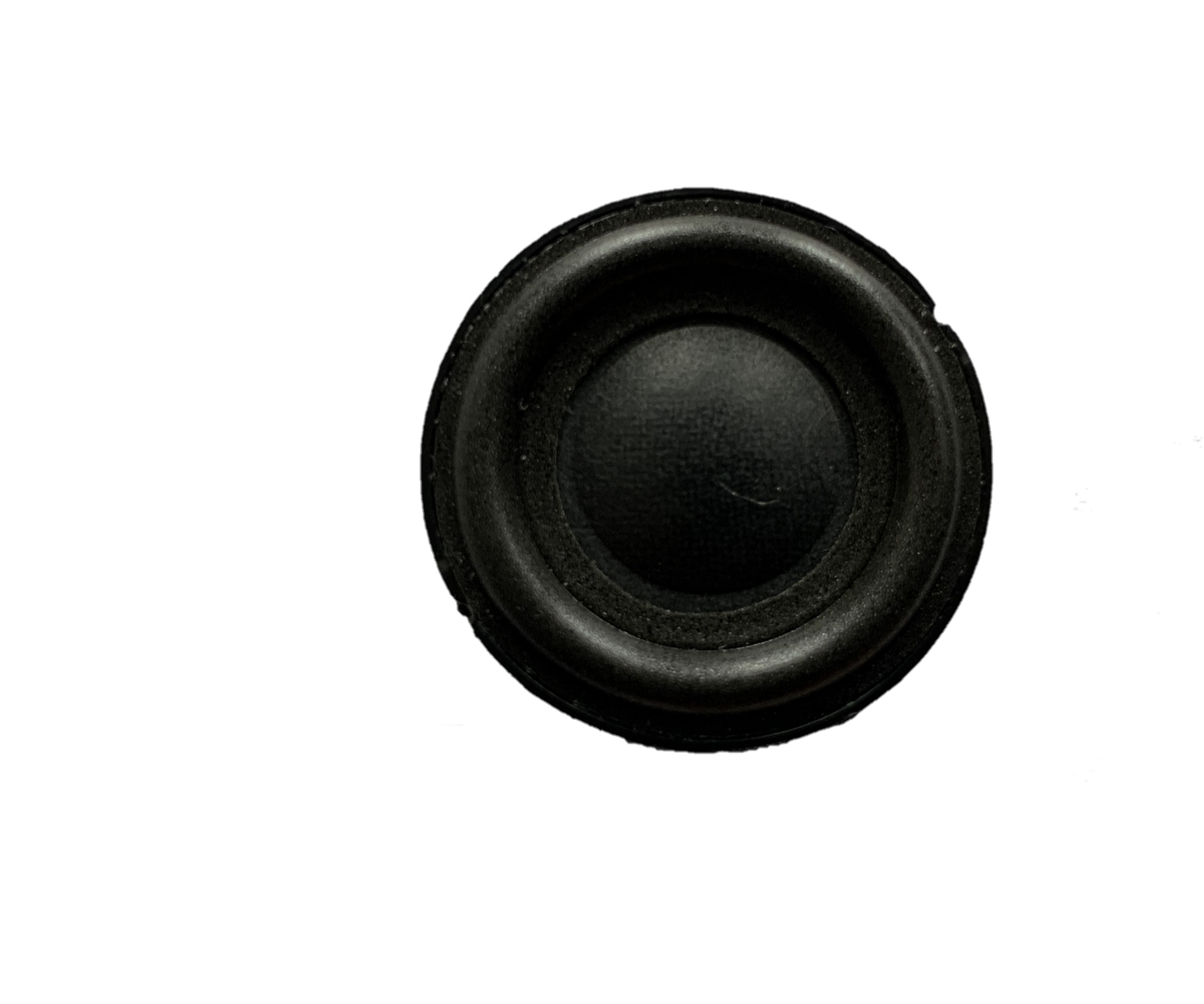

  • 3D image is for representational purposes only. Wires, connectors, terminals and speaker/microphone configurations can be customized for each project. Please contact Stetron for more information.

  • Key Features:

    • Low profile of 7.5mm
    • Small footprint of only 28mm
    • High SPL of 96.5dB @ rated power
    • High power handling capability of 3W
    • Low Fo of 350 Hz

    Applications:

    • Portable and handheld audio devices
    • PND
    • IoT application
